At SCW Bio-Energy Products, we are committed to delivering customized biomass energy solutions tailored to your needs. Here’s what we’ll do to ensure your success:
- Assess Your Needs: We evaluate your current setup and energy requirements to recommend the most efficient biomass system for your operation.
- Provide Turnkey Solutions: Our systems integrate seamlessly with your existing equipment, making installation and transition straightforward.
- Ensure Quality and Performance: Using state-of-the-art technology, we deliver systems that maximize energy efficiency and cost savings while ensuring reliability.
- Offer Ongoing Support: From installation to routine maintenance, we provide dedicated support to keep your system running smoothly.
- Help You Save: By switching to biomass, we’ll help you reduce heating and drying costs, saving you money and improving sustainability.
Compatible With any Grain Dryer.
Our Bio-Mass grain drying systems are designed to integrate seamlessly with any style of grain dryer. No matter your setup, we can provide an efficient, cost-effective solution to meet your drying needs.
Simple Hookup.

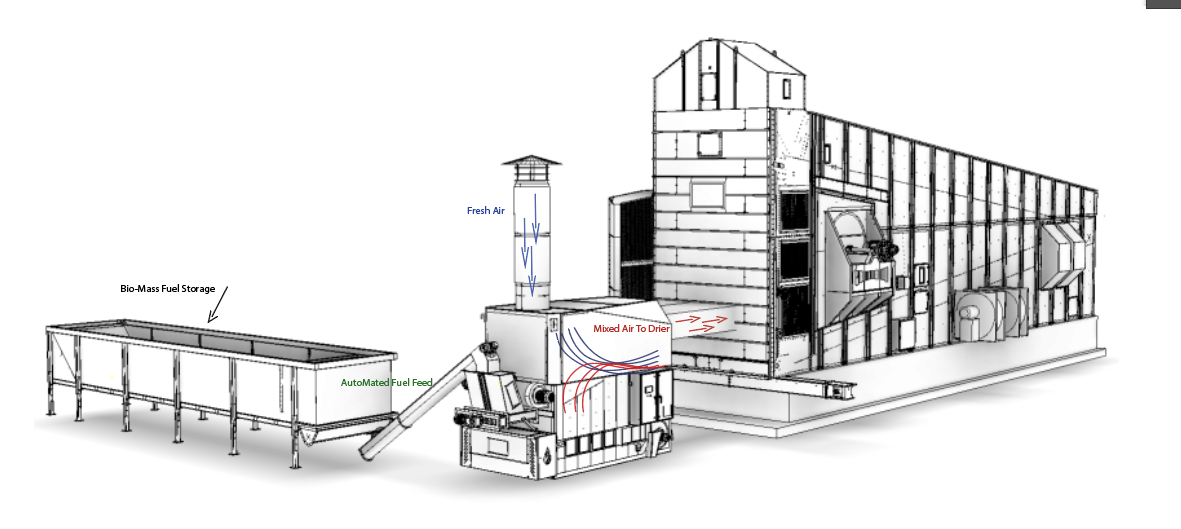

Position the unit anywhere near your existing dryer, connect ducts to the dryer’s fan inlet, linking it directly to our advanced Bio-Energy system.
The dryer pulls ambient air through an open flame in our unit, heats it efficiently, and supplies hot air directly to your grains for optimal drying performance.
KEY Benefits of our Bio-Grain Dryers:
- 25 HP system with Patent pending spark arrestor .
- Fully customizable installation with automated system.
- Maintain temps to +/-5 degrees plus Low fire option for overnight standby.
- Control from your smartphone and Can be switched on and off in 10 minutes..
- Up too 70% cheaper then fossil fuels.
In the event of an emergency, the dryer’s emergency stop button activates a safety mechanism that immediately opens dampers in the ductwork. This action diverts the flow of hot air within seconds, ensuring rapid shutdown and enhanced safety for your operation.
Upper SCW Dryer System.
5M BTU -18M BTU Biomass Grain Dryer Hot Air Drying Systems. We make it so simple for you!

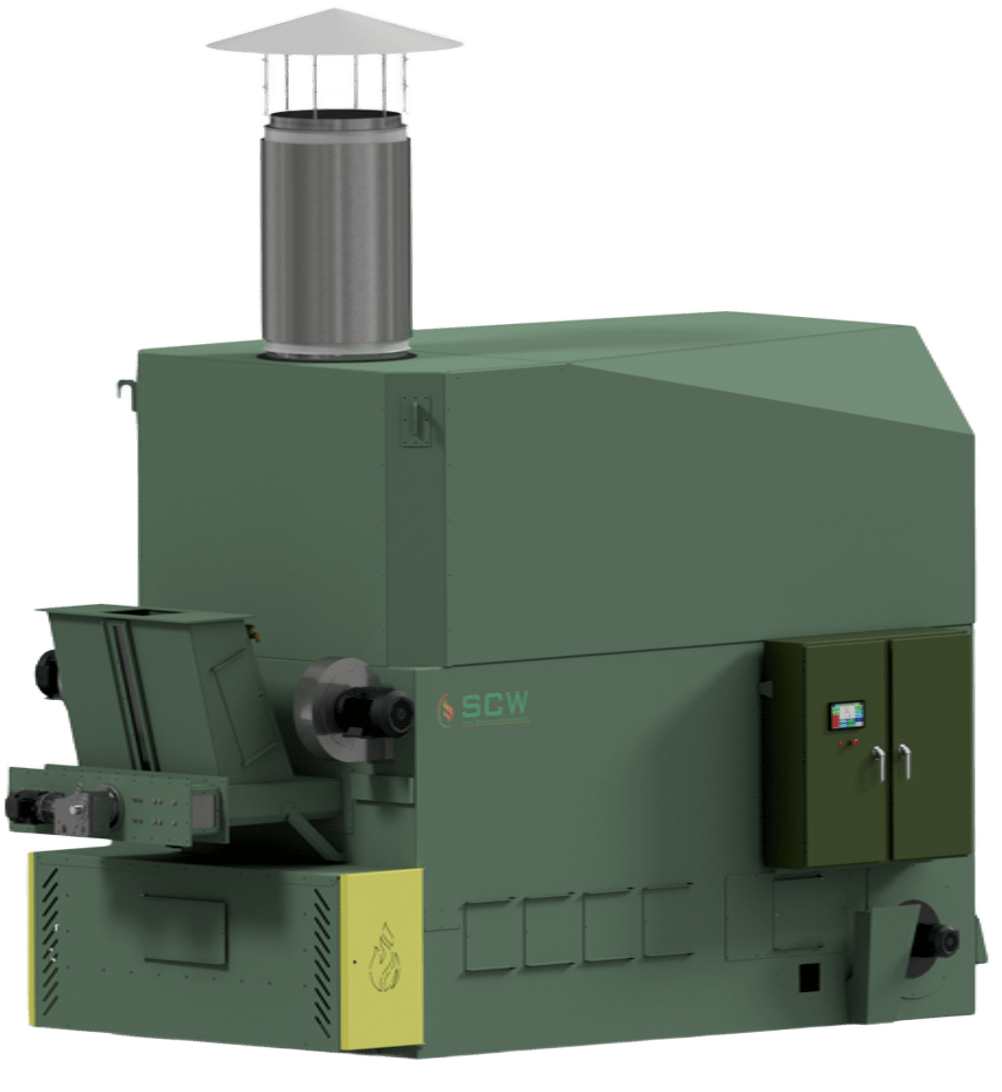

This re-Engineered 12M BTU BioGrainDryer design simply hooks up to an existing dryer with an air duct that directs the heat to the grains. The BioGrainDryer unit is fed with crop residue and wood waste via an automatic hopper and auger system.
With over a decade of successful installations, our systems have a long-standing reputation for reliability and efficiency in the field.
- Affordable & cheaper than the traditional system.
- Easy Integration.
- Fully Automated Ignition.
- Automatic fuel Feeding.
- Superior drying power.

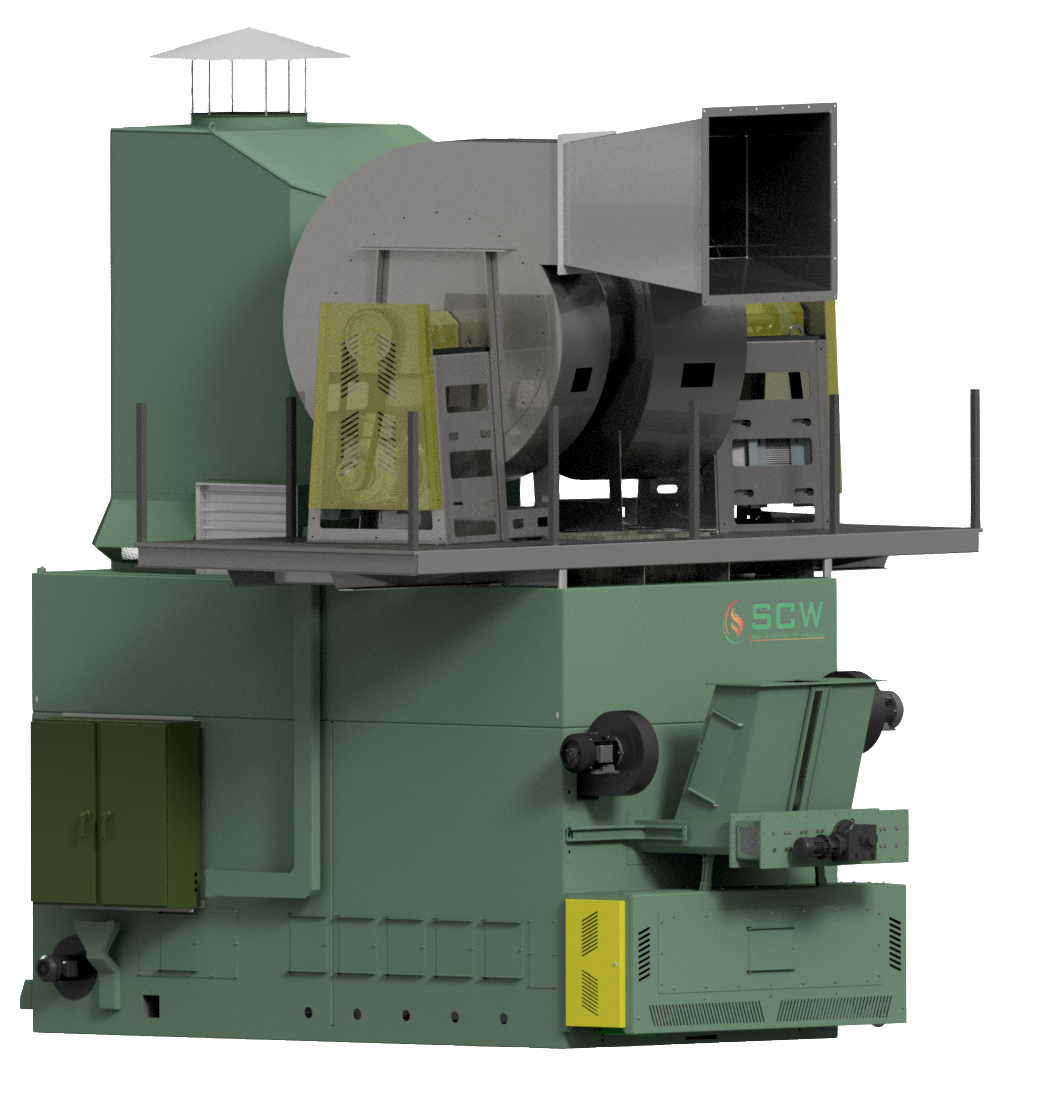

15,000 000BTU Bio Grain Dryer System.
This 15M BTU BioGrainDryer design simply hooks up to an existing dryer with an air duct that directs the heat to the grains. The BioGrainDryer unit is fed with crop residue and wood waste via an automatic hopper and auger system.
- Automated and can be controlled from your cell phone
- Communicates with your dryer to provide the right amount of heat and at the right temperature
- Can also use propane or natural gas all you need to do is turn off the BioGrainDryer
- Burns wood waste to produce heat, while reducing smoke and particulate matter to reduce pollution
Lower SCW BioMass Burning System.
Essential Features.
Assuming you are using Propane for heating your building. Assuming also propane in your area costs 30 cents ($0.30) per liter (including sales tax) and during the last heating season you spent $75,000.

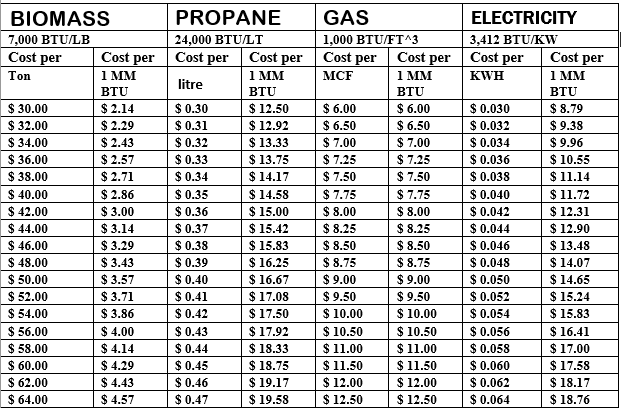

Figure A: Cost comparison table.
Computing Fuel Cost Savings.
- Annual Cost using Propane (@$0.30/L) ...................$75,000
- Volume of Propane Used ($75,000/$0.30) ..............250,000 Liters
- BTU/Liter of Propane ..........................................24,000 Btu/Liter
- Total BTUs used (250,000*24,000) ...................6,000,000Btu
- BTU/Ton of Bio-Mass (2,000Lbs*7,000Btu/Lb)........14,000,000 Btu/Ton
- Tons of Bio-Mass used (6,000,000/14,000,000) ...428.5 Tons
- Cost/Ton of Bio-Mass (delivered Biomass Table).......$40.00
- Annual Cost using Bio-Mass ..........................$17,140
- Total Annual Savings ($75,000-$17,140).............$57,860 *
In this case you would have saved approximately $ 57,860 per heating season.
* This calculation is based on the assumption that the efficiency of biomass system is the same as propane. Although the efficiency of biomass system is known to be lower.
Our Burn Chambers.

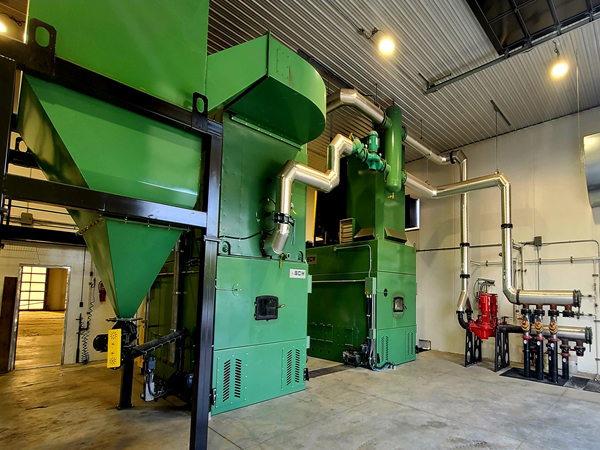

Furnaces Assembly.

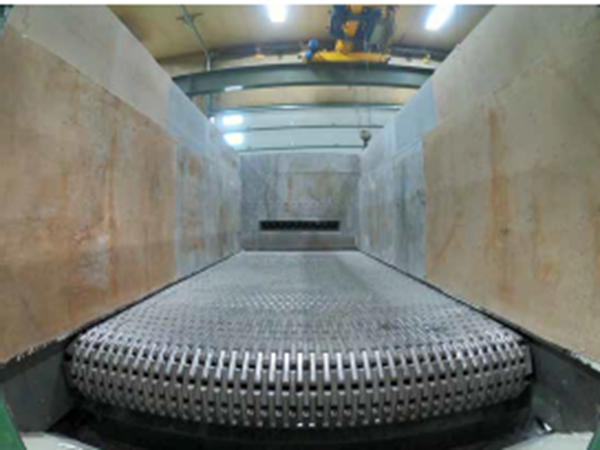

Chain Link Burn Bed.

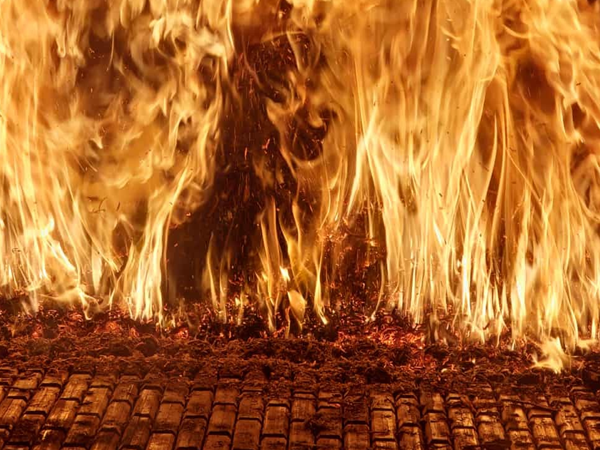

Flame in Chain Bed.
Our burn chamber is built for efficiency, featuring 12-inches of insulation, a further unique 6-inches refractory layer plus 6-inches of fiberboard insulation. This advanced design keeps heat completely contained, so even the temperature reaches around 1000degrees Fahrenheit inside, the exterior remains cool to the touch.
